Hydrastar Demco Hydraulic Brake Actuator w/ Lockout Solenoid & Cover - Disc - Zinc - 2" Ball - 7,000 lbs

Demco Hydraulic Brake Actuator w/ Lockout Solenoid & Cover - Disc - Zinc - 2" Ball - 7,000 lbs

SKU DM8705101
by Hydrastar
Save 9% Save 9%
$318.25
$318.25 - $318.25
$318.25
$289.00
$289.00 - $289.00
$289.00

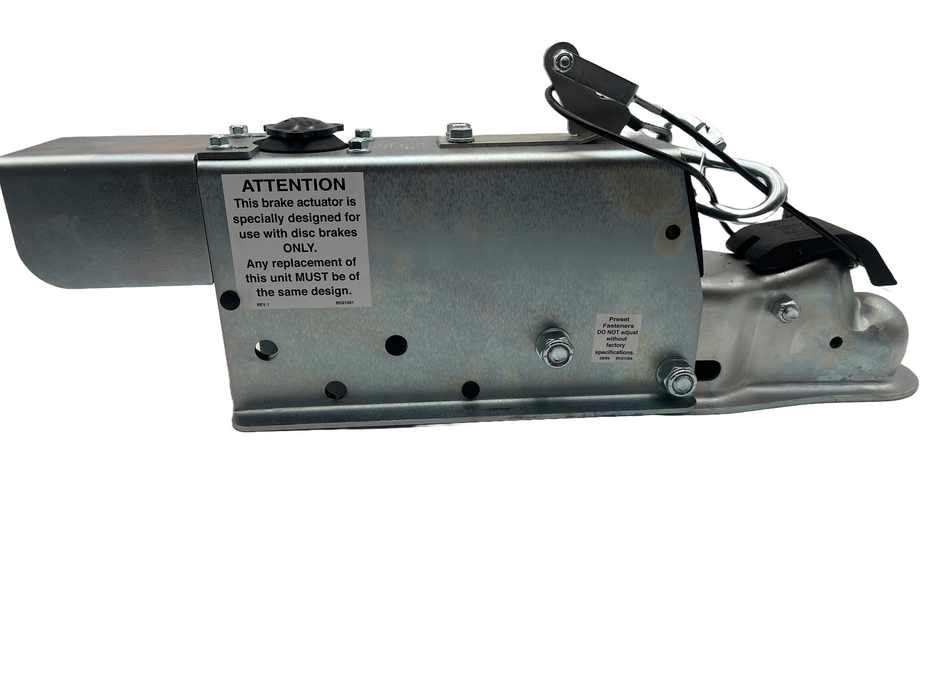

Demco surge brake actuator rated for 7,000 lbs GTW. Surge brakes activate mechanically when your tow vehicle decelerates — no electric brake controller needed. Disc brake ready, zinc plated, with lockout solenoid for easy reversing. Bolts directly to a 3" trailer tongue.

7,000
LBS GTW
2"
Ball
ZINC
Plated
DOT
Compliant
Questions about fitment?

Feel free to reach out to us or start a live chat in the bottom right corner for assistance.

Specifications

Technical Details

Type Surge brake (mechanical hydraulic)
Capacity 7,000 lbs Gross Trailer Weight
Brake Compatibility Disc brake ready
Coupler 2" ball
Tongue Bolts on to 3" tongue
Finish Zinc plated

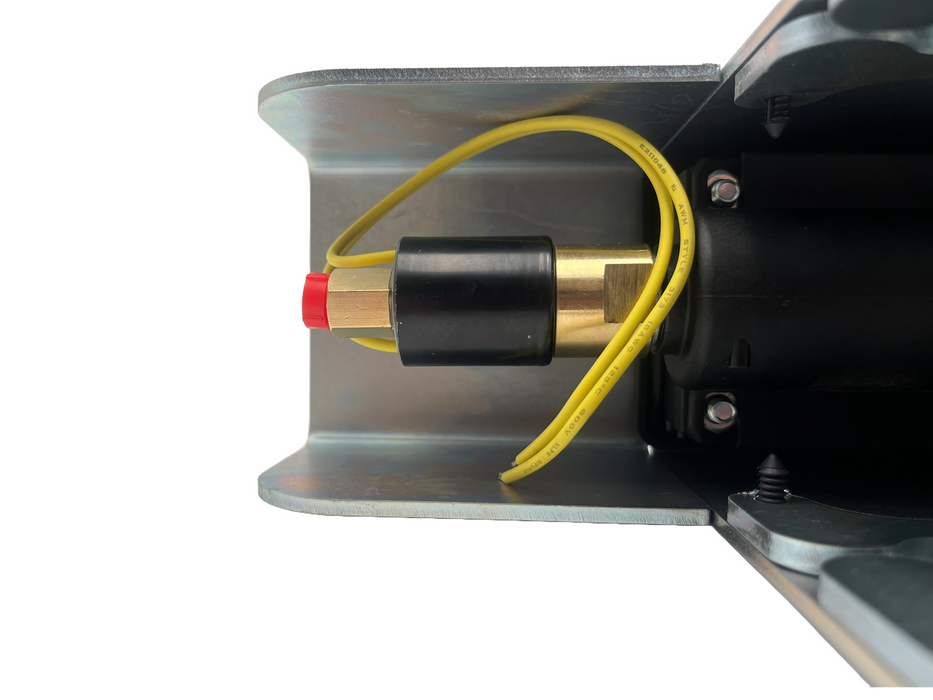

Lockout Solenoid & cover included
Controller Required No — operates mechanically
Latch Demco EZ Latch
Common Questions

Before You Buy

What is the difference between surge and EOH?+
Surge brakes activate mechanically when the trailer pushes against the coupler. EOH uses an electric signal for proportional braking. EOH is more precise and allows manual override from the cab.
Can I upgrade to EOH later?+
Yes. Replace the surge actuator with a Hydrastar EOH actuator. Keep your existing calipers and rotors.
