Hydrastar® 7K Axles, 8 Lug Integral Triple Axle Trailer Disc Brake Kit (1/2") {E7K-TR1}

• Complete Conversion Kit for Triple Axle Trailers, Includes:
  • (1) 381-7067 – Hydrastar® Electric Over Hydraulic (EOH) Trailer-Mounted Brake Actuator (1600 PSI)
    • Durable, sealed, fully enclosed extruded anodized aluminum housing case to easily withstand the environmental and road demands (not cast or plastic).
    • 2 YEAR LIMITED WARRANTY from date of purchase.
    • Complies with CFR-393 Federal Braking Requirements and meets all Department of Transportation (D.O.T.) regulations.
    • Designed for Drum and Disc Brakes with reliable 12 V DC operation and solid-state electronics.
    • Color-coded, heavy duty 12 Gauge wire for easy and quick install.
      (Black/Constant power, Blue/Brake controller, White/Ground, Yellow/Break-away)
    • 4 ft. Wire, Enough Length to Customize Any Job.
    • Required use of D.O.T. 3 or 4 Brake Fluid. (Not included.)
    • Compatible with any trailer configuration with 1-3 axles.
  • (3) E303-7K1-A –Hydrastar® 7K/8K Rated, Dacromet Coated Integral Single Axle Brake Kit (1/2 in.)
    • Corrosion-resistant Dacromet Coated Rotor and Bracket for Industry Standard trusted performance.
    • Premium, corrosion-resistant Dacromet Coated Caliper construction for reliable performance.
    • 1/2" in. wheel studs
    • 5-Bolt Brake Flange
    • 3 Year Limited Warranty on Hydrastar Disc Brakes
    • 3 Complete 7K Axle Brake Set, which includes:
      • (6) 303-E7R1 7K/8K Axle Rated Integral Dacromet Coated Rotor
      • (6) 303-E78C 7K/8K Axle Rated Dacromet Coated Integral

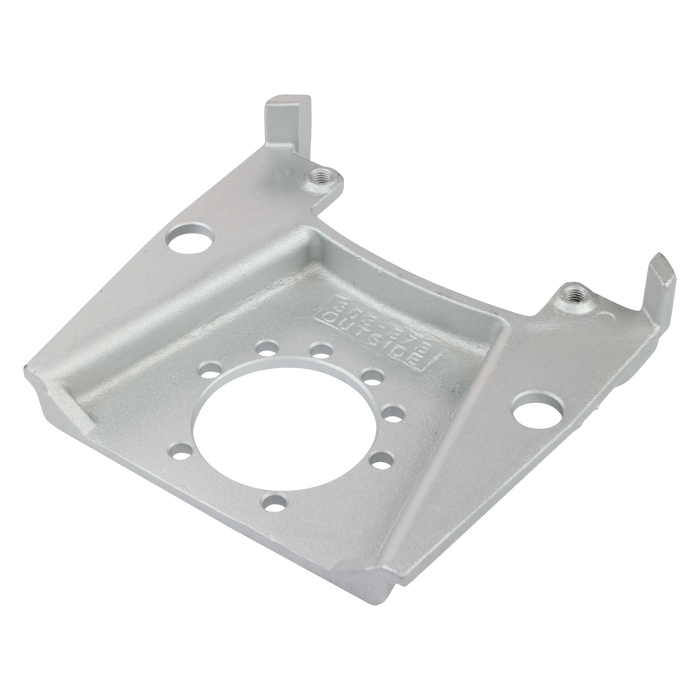

      • (6) 303-7BI 7K Axle Rated Dacromet Coated Bracket
  • (1) 496-253 – Hydrastar® Hydraulic Triple Axle Brake Line Kit – 25 ft., 3/16 in., 3000psi hydraulic brake pressure
    • The Hydrastar® Brake Line Kit includes:
      – Brake Lines
      – Fittings
      – Required Hardware
    • Corrosion resistant, high-performance alloy tubing backed by a Lifetime Guarantee.
    • Triple annealed and eddy-current tested, Hydrastar® brake lines are walled 40% thicker preventing kinking and allows simple routing and smooth bends without bending tools required.
    • Meets SAE J1650 Standards (0.028 in.)
    • Made in USA
    • This kit is intended for Grease Lube Applications Only
•   This KIT also includes all Bearings, Seals, and Grease Caps:
  • (6) 25580 – Hydrastar® 6K/7K/8K Rated Inner Bearing
  • (6) 14125A – Hydrastar® 7K/8K Rated Outer Bearing (5/8 in., 9/16 in.)

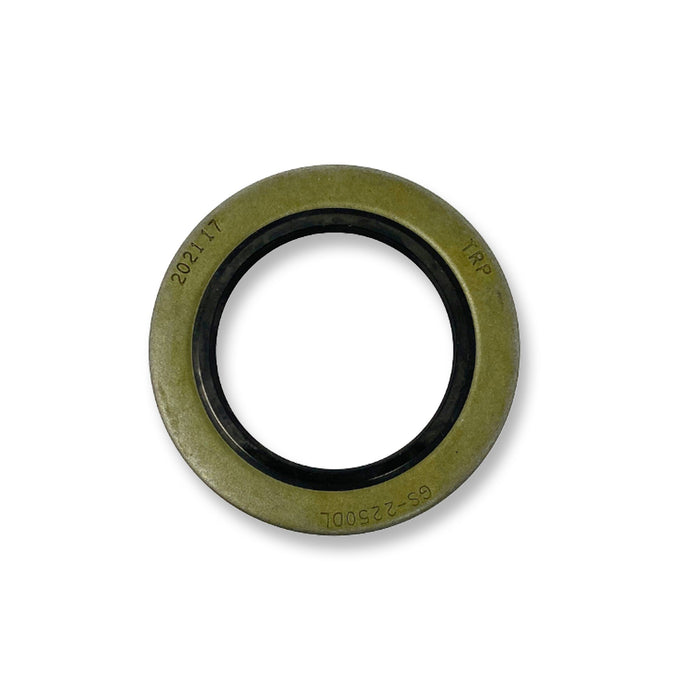

  • (6) 472920 – Hydrastar® 6K/7K/8K Rated Grease Seal
  • (6) MAT-20-275L - Press Posi Lube Grease Gap
