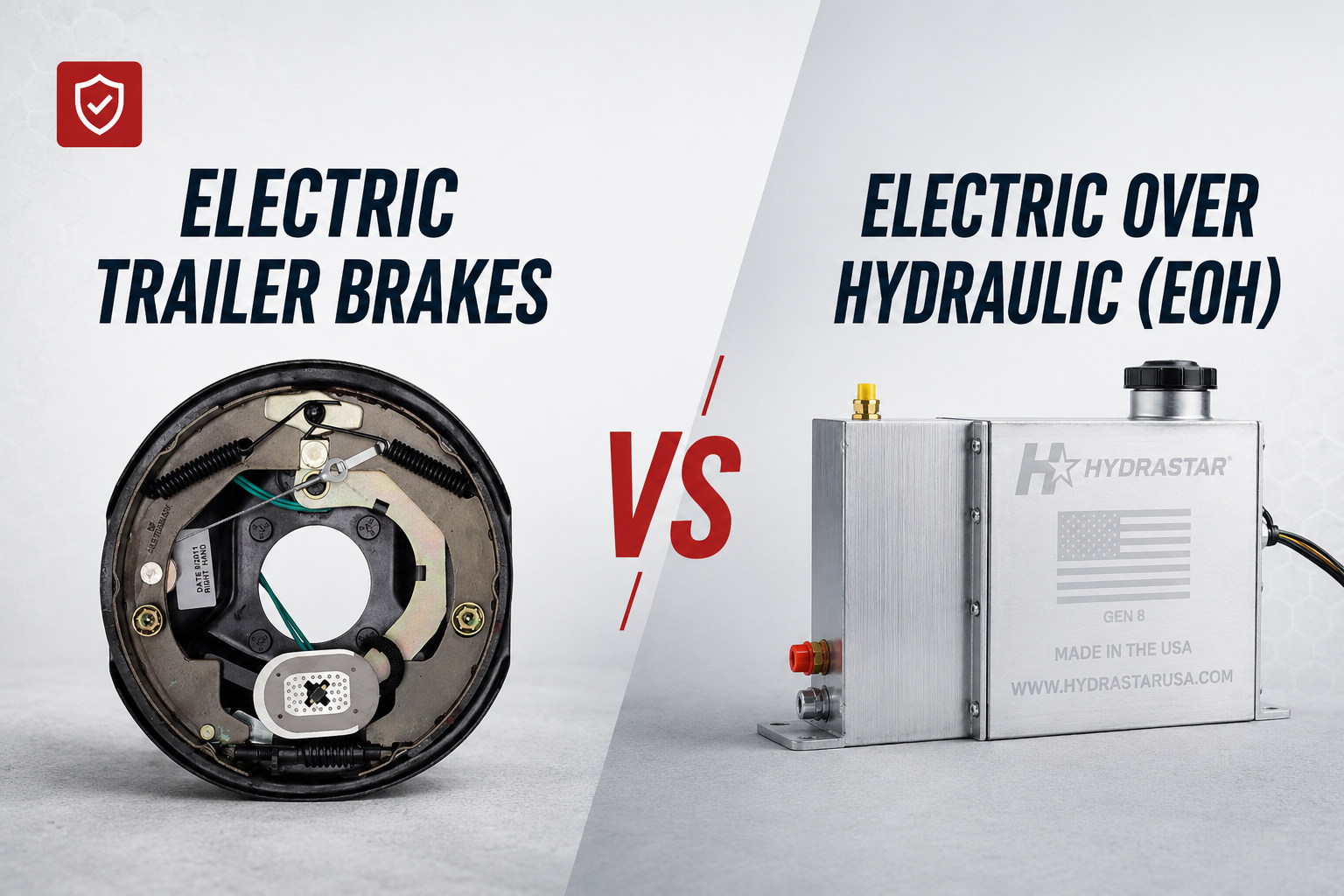

Electric Trailer Brakes vs Electric Over Hydraulic (EOH): Which System Does Your Trailer Actually Need?
The 30-Second Answer
Electric brakes use an electromagnet inside each drum to mechanically activate the brakes. Simple, cheap, fine for light to moderate trailers in dry conditions.
Electric Over Hydraulic (EOH) takes the same electric signal from your tow vehicle, but routes it through a hydraulic actuator that pressurizes a sealed brake-fluid system — feeding disc or drum brakes at each wheel.
Bottom line: If you tow heavy, tow often, tow in water, tow disc brakes, or tow with a modern GM/Ford truck — you want EOH. If you have a small utility trailer with electric drums and it's working fine, leave it alone.
How Electric Trailer Brakes Work
Electric trailer brakes are the OEM standard on most production trailers under 10,000 lbs. They're elegantly simple: each wheel has a drum with an electromagnet mounted inside. When you press the tow vehicle brake pedal (or the controller's manual override), DC current flows through a 7-pin connector down to those electromagnets. The magnet sticks to the spinning drum's armature surface, pulls a lever arm, and forces the brake shoes outward against the drum.
More current = stronger magnet = more aggressive braking. The whole system runs off the trailer's 12V circuit. No fluid, no master cylinder, no bleeding.
What Electric Brakes Are Good At
- Cheap to manufacture and replace
- Simple wiring — no plumbing, no master cylinder, no fluid
- Native plug-and-play with any standard trailer brake controller
- Adequate stopping power for light-duty utility, cargo, and small RV trailers
Where Electric Brakes Fall Apart
- Heat fade. Drum brakes trap heat. Long descents glaze the shoes and cut stopping power exactly when you need it most.
- Water kills them. Submerge an electric drum at a boat ramp and the magnet will rust, the drum will warp, and the wiring will corrode. Marine trailers eat through them.
- No disc brake option. Electric magnets only work with drum brakes. If you want disc — for better heat dissipation, less fade, less maintenance — you can't get there with a pure electric system.
- Modern truck compatibility. 2024–2026 GM trucks (Silverado, Sierra, Tahoe, Suburban, Yukon, Escalade, Colorado, Canyon, Hummer EV) have a known software issue with their integrated brake controllers that disables trailer brakes. Many electric setups need an adapter module to play nice.
How Electric Over Hydraulic (EOH) Works
EOH starts with the same electric signal from your tow vehicle's brake controller — but instead of going to a magnet at each wheel, it goes to a single component mounted on the trailer tongue: the actuator. The actuator is a self-contained unit with an electric motor, a fluid reservoir, and a hydraulic pump. When it senses brake demand, it pressurizes brake fluid through hydraulic lines to disc calipers (or hydraulic drum brakes) at each wheel — exactly like the brakes in your truck or car.
You're swapping electromagnets at four wheels for one actuator at the tongue, plus a sealed hydraulic loop. More moving parts in one place, fewer at the wheels. And because it's a true hydraulic system, you get all the engineering advances that come with that — disc brakes, predictable pressure, stable performance under heat and water.
Tow Vehicle
Brake controller sends a proportional electric signal through the 7-pin connector
→
EOH Actuator
Tongue-mounted unit converts the signal into hydraulic pressure (1,000–1,600 PSI)
→
Wheel Brake
Sealed hydraulic lines feed disc calipers (or hydraulic drum) at every wheel
For the full hydraulic schematic, see the HydraStar Technical Drawings (PDF) or the Service Manual.
The Reference Standard
HydraStar® Gen 8 EOH Actuator
Our Gen 8 is the actuator most modern trailer manufacturers spec from the factory. It's built around a brushless DC motor, a sealed reservoir, and a CAN-aware control board that talks cleanly to OEM brake controllers — including modern GM and Ford integrated systems.
- ✓1,600 PSI for disc brake systems
- ✓1,200 PSI for heavy-duty drum brakes
- ✓1,000 PSI for standard drum brakes under 7K lbs
- ✓Marine variant for boat trailers (saltwater rated)
- ✓2-year warranty, lifetime brake-line warranty on kits
Side-by-Side: Where the Difference Actually Shows Up
| Dimension | Electric Brakes | Electric Over Hydraulic |
|---|---|---|
| Brake type at wheel | Drum only | Disc or drum |
| Stopping power | Adequate (light/medium) | Significantly higher (especially with disc) |
| Heat dissipation | Poor — fades on long descents | Strong, especially with disc rotors |
| Water / saltwater | Susceptible to corrosion | Marine variant rated for submersion |
| Maintenance | Magnet swaps, drum machining, shoe replacement | Pad/rotor replacement, occasional fluid bleed |
| Modern truck compat. | May require adapter (GM 2024–2026) | Plug-and-play with HydraStar CAM (#381-7074) |
| Up-front cost | Lower | Higher — but lower lifetime cost on heavy use |
| Best for | Light cargo, utility, small enclosed | Heavy haul, RV, boat, equipment, modern trucks |
5 Signs You Should Be Running EOH
01
You tow more than 7,000 lbs.
Above this weight class, electric drum heat-fades on real descents. EOH disc holds up.
02
Your trailer touches water.
Boat ramps eat electric drums. The HydraStar marine actuator is built for it.
03
You tow with a 2024+ GM or Ford.
Modern integrated controllers play nicer with EOH (with the right adapter module).
04
You want disc brakes.
There is no path to disc on a pure electric system. EOH is the only route.
05
You're replacing surge brakes.
Surge has no driver feedback and no manual override. EOH gives you both.
If You Go EOH: Which PSI Do You Need?
This is the #1 question we get on the phone. The answer is straightforward but matters — picking the wrong PSI either means weak brakes or premature wear.
1,000 PSI
Standard Drum
Trailers under 7,000 lbs running standard hydraulic drum brakes.
1,200 PSI
Heavy-Duty Drum
Heavier trailers, dual-wheel applications, larger drums.
1,600 PSI
Disc Brakes
All disc brake conversions. The standard for modern setups.
Important — 2024–2026 GM Truck Owners
If your dashboard is showing "Service Trailer Brakes" or your trailer brakes are dropping in and out, that's a known software issue across the entire 2024–2026 GM lineup — Silverado, Sierra, Tahoe, Suburban, Yukon, Escalade, Colorado, Canyon, and Hummer EV.
Plug-and-play fix: HydraStar GM Diode Module (#381-7074) for EOH systems, or #381-7075 for electric drum systems. Works with any brand of actuator, not just HydraStar.
