Hydrastar® 7K Axles, 8 Lug Integral Tandem Axle Trailer Disc Brake Kit (1/2") {E7K-T1}

SKU #E7K-T1
Save 27% Save 27%
Original price $2,199.00
Original price $2,199.00 - Original price $2,199.00
Original price $2,199.00
Current price $1,599.99
$1,599.99 - $1,599.99
Current price $1,599.99
  • Complete ‘Installation Kit’ for Tandem Axle Trailers, Includes:
    • (1) 381-7067 – Hydrastar® Electric Over Hydraulic (EOH) Trailer-Mounted Brake Actuator (1600 PSI)
      • Durable, sealed, fully enclosed extruded anodized aluminum housing case to easily withstand the environmental and road demands (not cast or plastic).
      • 2 YEAR LIMITED WARRANTY from date of purchase.
      • Complies with CFR-393 Federal Braking Requirements and meets all Department of Transportation (D.O.T.) regulations.
      • Designed for Drum and Disc Brakes with reliable 12 V DC operation and solid-state electronics.
      • Color-coded, heavy duty 12 Gauge wire for easy and quick install.
        (Black/Constant power, Blue/Brake controller, White/Ground, Yellow/Break-away)
      • 4 ft. Wire, Enough Length to Customize Any Job.
      • Required use of D.O.T. 3 or 4 Brake Fluid. (Not included.)
      • Compatible with any trailer configuration with 1-3 axles.
    • (2) E303-7K1-A –Hydrastar® 7K/8K Rated, Dacromet Coated Integral Single Axle Brake Kit (1/2 in.)
      • Corrosion-resistant Dacromet Coated Rotor and Bracket for Industry Standard trusted performance.
      • Premium, corrosion-resistant Dacromet Coated Caliper construction for reliable performance.
      • 1/2" in. wheel studs
      • 5-Bolt Brake Flange
      • 3 Year Limited Warranty
      • Complete 7K Axle Brake Set, which includes:
        • (2) 303-E7R1 7K/8K Axle Rated Integral Dacromet Coated Rotor

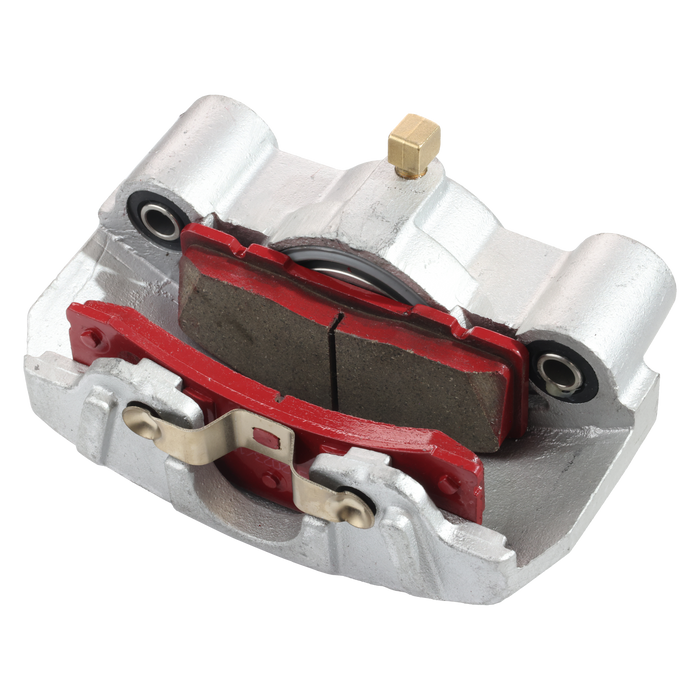

        • (2) 303-E78C 7K/8K Axle Rated Dacromet Coated Integral
        • (2) 303-7BI 7K Axle Rated Dacromet Coated Bracket

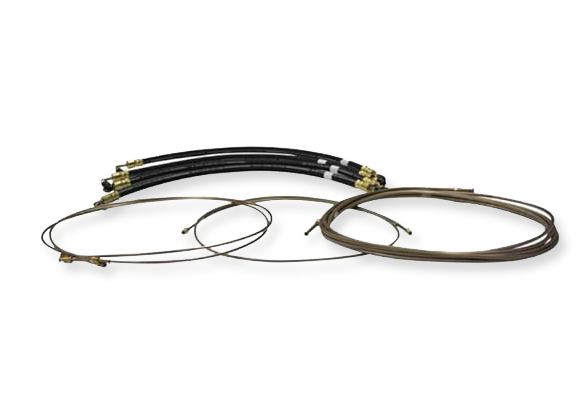

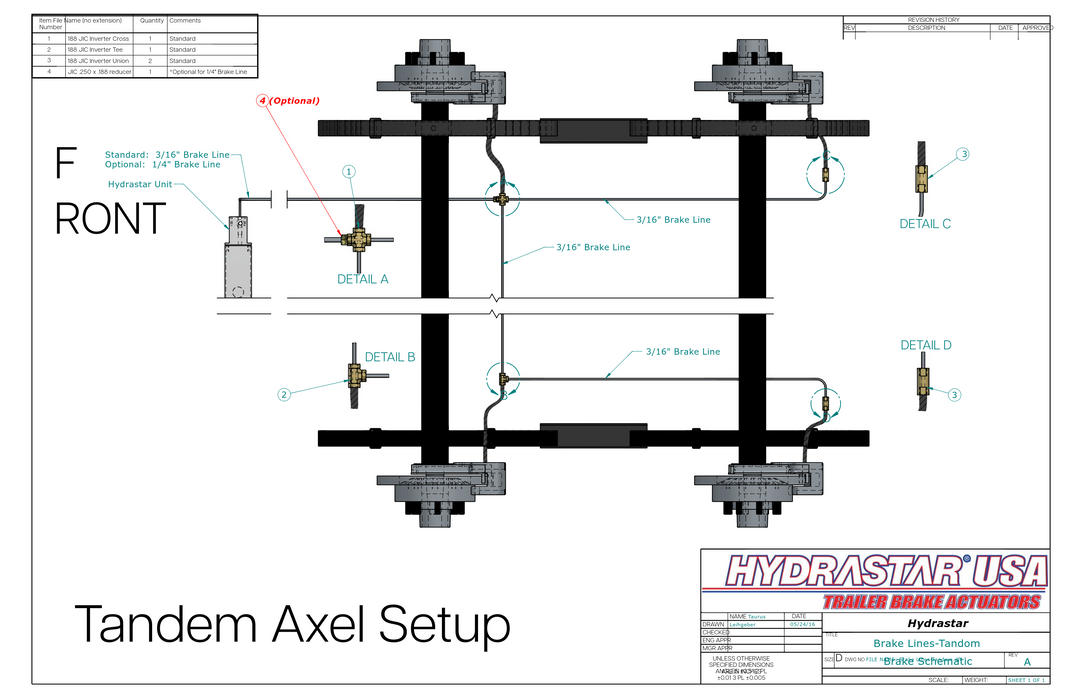

    • (1) 496-252 – Hydrastar® Hydraulic Tandem Axle Brake Line Kit – 25 ft., 3/16 in., 3000psi hydraulic brake pressure
      • The Hydrastar® Brake Line Kit includes:
        – Brake Lines
        – Fittings
        – Required Hardware
      • Corrosion resistant, high-performance alloy tubing backed by a Lifetime Guarantee.
      • Triple annealed and eddy-current tested, Hydrastar® brake lines are walled 40% thicker preventing kinking and allows simple routing and smooth bends without bending tools required.
      • Meets SAE J1650 Standards (0.028 in.)
      • Made in USA
      • This kit is intended for Grease Lube Applications Only
  •   This KIT also includes all Bearings, Seals, and Grease Caps:
    • (4) 25580 – Hydrastar® 6K/7K/8K Rated Inner Bearing

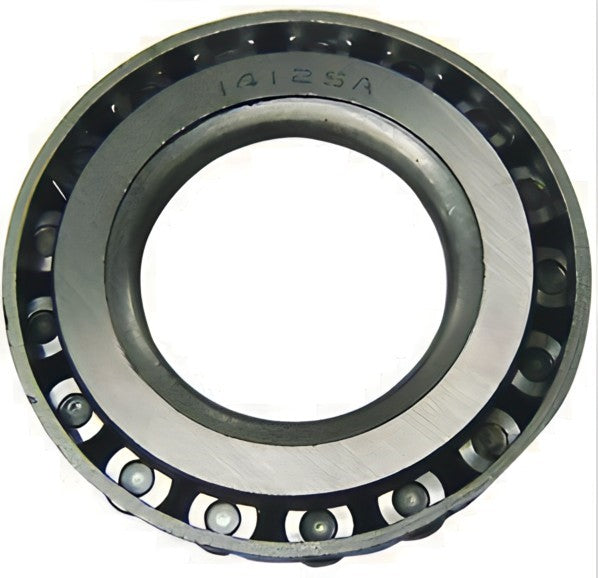

    • (4) 14125A – Hydrastar® 7K/8K Rated Outer Bearing (5/8 in., 9/16 in.)
    • (4) 472920 – Hydrastar® 6K/7K/8K Rated Grease Seal
    • (4) MAT-20-275L - Press Posi Lube Grease Gap

For Service Manual, Instructions and Warranty Testimonials, Click Here.
