Marine Hydrastar® 6K Axles, Plug - Play, 6 Lug Slip Over Triple Axle Trailer Disc Brake Kit Complete (1/2") {#M6K-TR1SO-I}

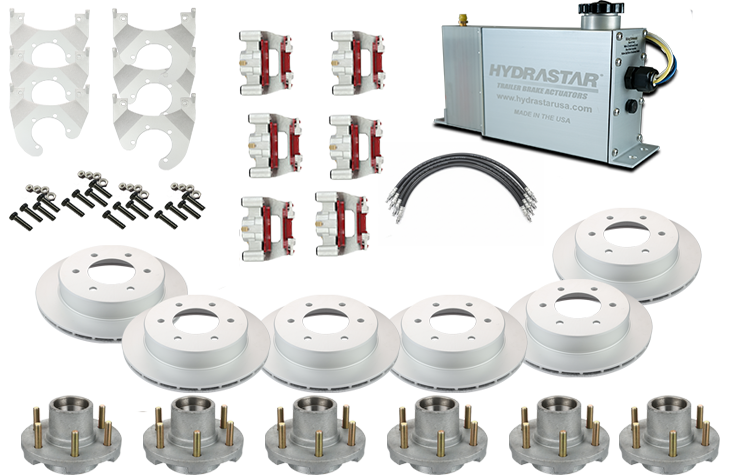

• Complete Conversion Kit for Triple Axle Trailers, Includes:
  • (1) PP381-8067 – Marine Hydrastar® Plug & Play Electric Over Hydraulic (EOH) Trailer-Mounted Brake Actuator Kit (1600 PSI)
    • Durable, sealed, fully enclosed extruded anodized aluminum housing case to easily withstand the environmental and road demands (not cast or plastic).
    • 2 YEAR LIMITED WARRANTY from date of purchase.
    • Complies with CFR-393 Federal Braking Requirements and meets all Department of Transportation (D.O.T.) regulations.
    • Designed for Disc Brakes with reliable 12 V DC operation and solid-state electronics.
    • Plug & Play Model, No Wiring Neccessary
    • Integrated Cam (Compatible with all Factory Controllers)
    • Includes Prewired Harness and Battery Back Up Battery Kit
    • Required use of D.O.T. 3 or 4 Brake Fluid. (Not included.)
    • Compatible with any trailer configuration with 1-3 axles.
  • (3) E303-6K1SO-A(FL) –Hydrastar® 6K Rated, Dacromet Coated Slip Over Single Axle Brake Kit (1/2 in.)
    • Corrosion-resistant Dacromet Coated Rotor and Bracket for Industry Standard trusted performance.
    • Premium, corrosion-resistant Dacromet Coated Caliper construction for reliable performance.
    • 1/2" in. wheel studs
    • 5-Bolt Brake Flange
    • 3 Year Limited Warranty on Hydrastar Disc Brakes
    • Complete 6K Axle Brake Set, which includes:
      • (6) 303-E6R1SO 6K Axle Rated Integral Dacromet Coated Rotor
      • (6) 303-E36C 3K/6K Axle Rated Dacromet Coated Caliper
        • (3) 303-E6LBS  6K Axle Rated Dacromet Coated Bracket LH
        • (3) 303-E6RBS 6K Axle Rated Dacromet Coated Bracket RH
        • *Note: Axle Brackets used are open, do not have to remove hubs to install bracket.
  • (1)  - Hydrastar® Hydraulic Triple Axle Flexible Brake Line Kit – 24 ft., 3/16 in. Main, 3000psi hydraulic brake pressure
    • Triple Axle Flexible Brake Line Kit
      24' Main Line fits up to 80" Wide Frame Axles
      (Includes All the Hoses and Brake Line Fittings)
    • DOT Rubber Flexible Brake Lines, No specialized Brake Line tool needed to install, easy to maneuverer
    • Meets SAE J1650 Standards (0.028 in.)

    • (6) PPG82655GV Hot Dipped Galvanized 6 on 5.5" Pregreased Idler Hubs (Bearings & Seals Preinstalled Fully Greased Ready to install) * Bearings: 15123, 25580, Posi Lube Grease Cap, Coned Lug Nuts
•   This KIT also includes Stainless Brake Flange Hardware Kits for all axles.
