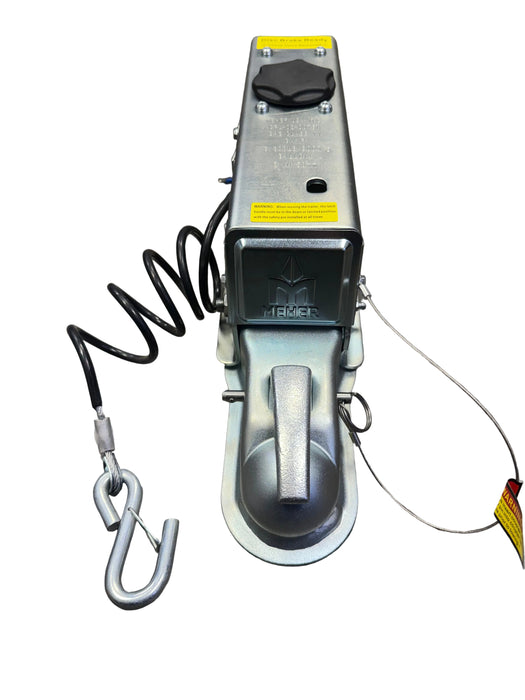

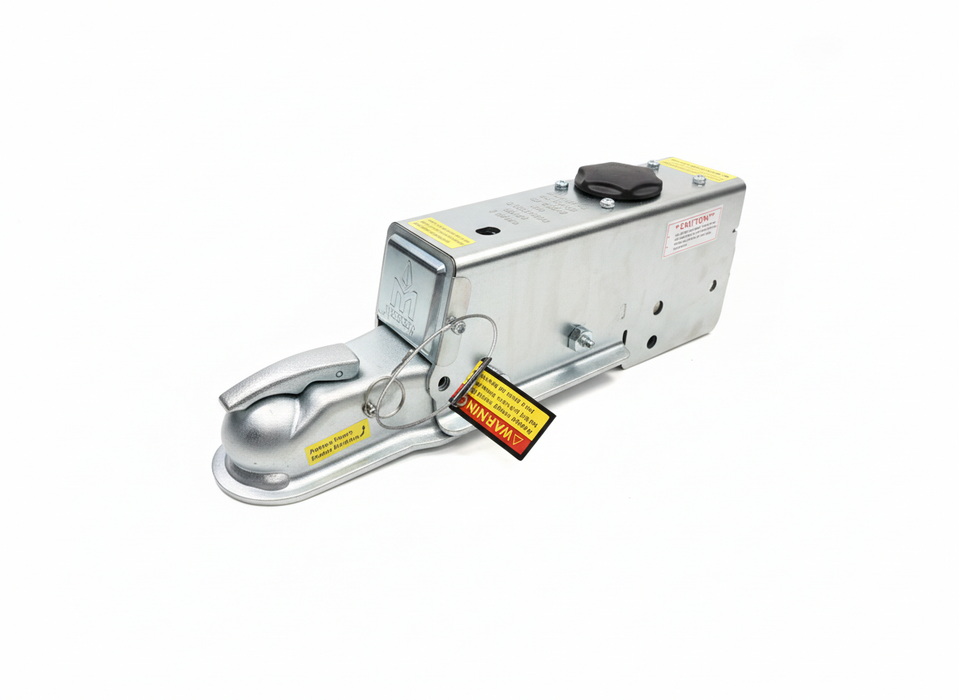

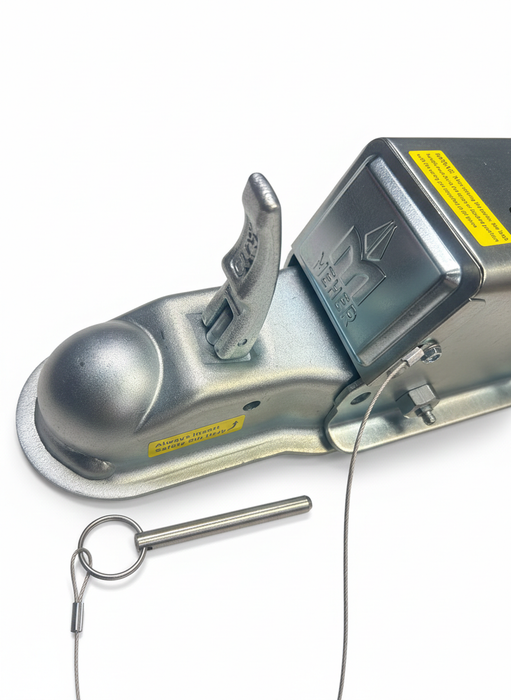

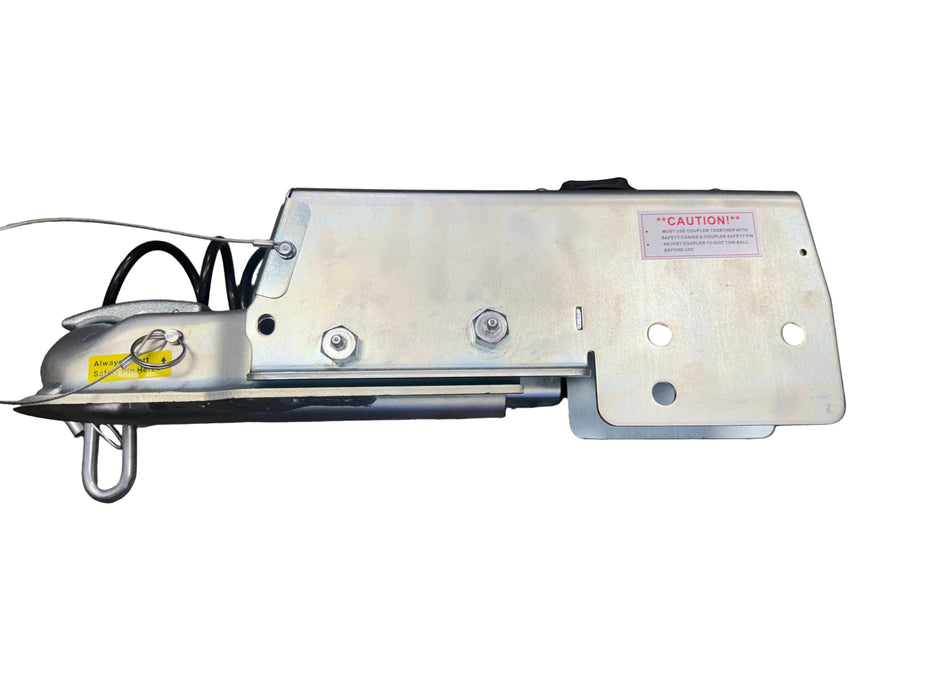

Hydrastar Meher Hydraulic Disc Brake Actuator w/ Lockout Solenoid - Disc - Zinc - 2" Ball - 6,600 lbs

Meher Hydraulic Disc Brake Actuator w/ Lockout Solenoid - Disc - Zinc - 2" Ball - 6,600 lbs

SKU CPL-02-0078N
by Hydrastar
$264.00 - $264.00
$264.00
$264.00 - $264.00
$264.00

Meher surge brake actuator rated for 6,600 lbs GTW. Surge brakes activate mechanically when your tow vehicle decelerates — no electric brake controller needed. Disc brake ready, zinc plated, with lockout solenoid for easy reversing. Bolts directly to a 3" trailer tongue.

6,600
LBS GTW
2"
Ball
ZINC
Plated
DOT
Compliant
Questions about fitment?

Feel free to reach out to us or start a live chat in the bottom right corner for assistance.

Specifications

Technical Details

Type Surge brake (mechanical hydraulic)
Capacity 6,600 lbs Gross Trailer Weight
Brake Compatibility Disc brake ready
Coupler 2" ball
Tongue Bolts on to 3" tongue
Finish Zinc plated
Lockout Solenoid & cover included
Controller Required No — operates mechanically
Common Questions

Before You Buy

What is the difference between surge and EOH?+
Surge brakes activate mechanically when the trailer pushes against the coupler. EOH uses an electric signal for proportional braking. EOH is more precise and allows manual override from the cab.
Can I upgrade to EOH later?+
Yes. Replace the surge actuator with a Hydrastar EOH actuator. Keep your existing calipers and rotors.
